| TECHNICAL SPECIFICATIONS |
|
| SOLO 2 |
|
|
| SOLO 2 DL |
|
|
| Display |
Graphical |
| Display resolution |
238x99 pixels |
| Display pages |
Up to 5 freely configurable |
| Backlight |
7 configurable RGB colors |
| Shift lights/alarm LEDs |
10 configurable RGB LEDs |
| Integrated track database |
Yes |
| Inertial platform |
Internal 3 axis ±5G accelerometer + 3 axis gyro
+ 3 axis magnetometer |
| Wi-Fi connection |
Yes |
| GPS |
10 Hz |
| External power |
12 V |
| Memory |
4 GB |
| Battery type |
Rechargeable Lithium |
| Pushbuttons |
Metallic |

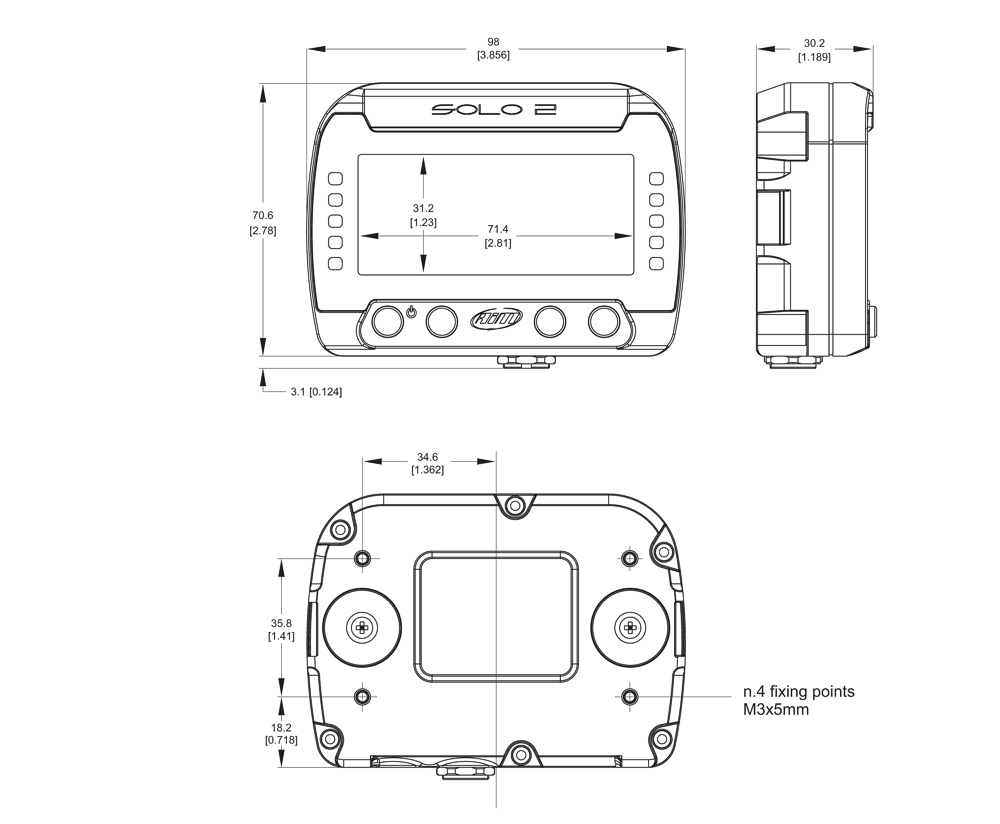

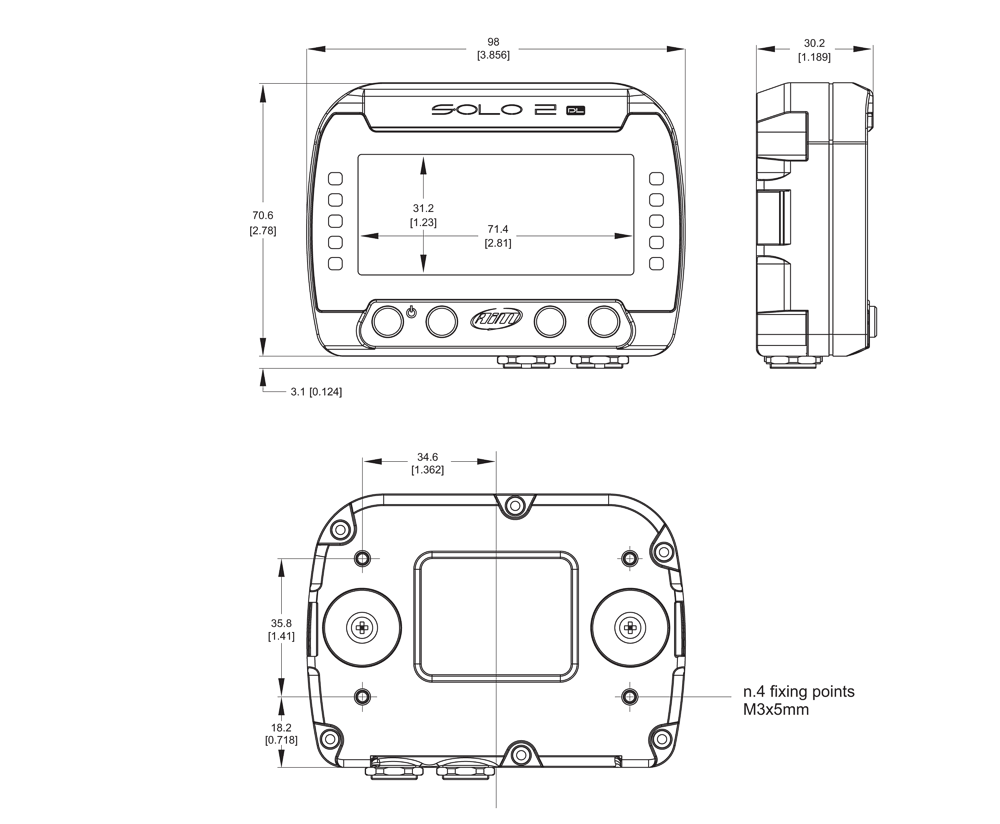

| Dimensions |
98.0x73.7x30.2 mm |
| Weight |
240 g, battery included |
| Waterproof |
IP67 |
| Solo 2 DL |
|
| ECU connection |
CAN, RS232 or K-Line to 1,000 + industry leading ECUs |
|
|
|
|
|
